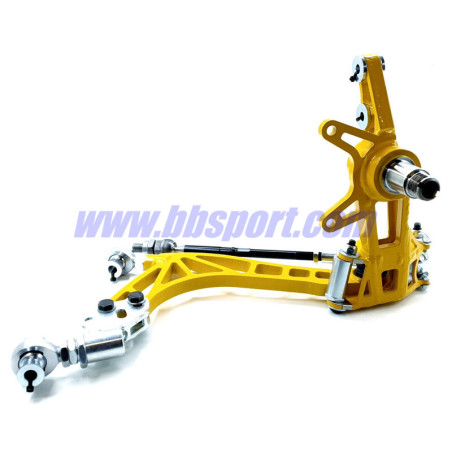

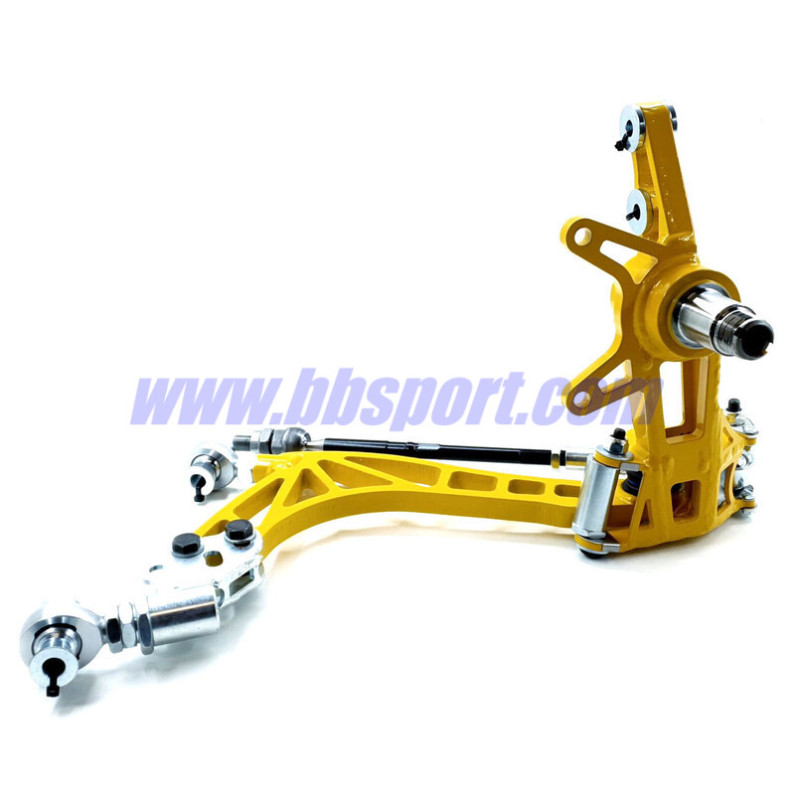

FAT Drift Lock Kit Ultra for Nissan S13, S14, S15 (to suit 5x120 Hubs)

FAT Ultra Lock Kit for Nissan Silvia S15 Specifications

Manufactured by FAT, a drift specialist company based in Poland, this kit for Nissan Silvia S15 allows you to noticeably increase the steering angle and improve the stability of your vehicle through many adjustment possibilities. Offering up to 68° of steering angle, it is an ideal solution for extreme drifting and enables precise adjustment of the Ackermann effect, roll center, camber and caster.

Even at full steering lock, your car maintains a perfect front axle alignment and ensures optimal control by keeping the wheels flat on the ground without excessive camber gain. Thanks to its eccentric bushings, this kit also eliminates bump steer, a phenomenon which induces wheels to steer without input from the steering wheel.

Kit contents :

• 2 "ultra" knuckles available for 17" or 18" wheels (rollcenter correction and overall geometry are even better in 18" version)
• PCD compatibility to choose from 4x114.3, 5x114.3 or 5x120 - hubs not supplied (5x120 will require E36 or E46 calipers and discs)
• Custom subframe with steering rack relocation (Skyline subframe is recommended for RB, 1JZ or 2JZ engine swap, to make engine fitment easier)
• 2 adjustable arms
• 2 adjustable top relocators
• 2 tie rods with tie rods ends
• 1 Ackermann kit (28 locking plates)
• 1 set of steering rack clamps: 3 diameters (45 mm, 48 mm, 50 mm)
• 8 mounting bushings for S13 and S14/15 coilovers
• 1 set of bolts

Please note : This kit is suitable for S13, S14 and S15 bodies: the front arm mount is adjustable to fit your model. The knuckles are supplied with bushings for M12 and M14 coilovers mounting bolts.
