Nissan S14 S15 Front V2 Drift Angle Lock Kit with Rack Relocation
Descripción en el idioma original
For Extreme Steering Angle !
- V2 Wisefab kit for Nissan 200SX S14-S15
- 70° steering angle
- Better control & less sensitive steering
- 60 mm raised roll centre
- Increased steering ratio for smoother handling
- Adjustable Ackermann effect
- Camber & caster adjustable top mounts
- Adjustable lock stoppers
- Optional steering rack relocation kit
- Reduced weight
- S13 kit is for the 4 lug spindle, if you have 5 lug on your S13 please select the Nissan S14 V2 kit
Wisefab V2 Lock Kit for Nissan S14-S15
Increased steering angle, 60 mm raised roll centre, adjustable Ackermann effect, top mounts with camber and caster settings... The new Wisefab V2 lock kits are simply the best bolt-on solution on the market for your S13, with a steering angle up to 70°.
With many years experience and feedback from the best drivers in the world, Wisefab have developed a new version of their kit for Nissan S chassis. It features : improved control, more suspension travel, less sensitive steering, increased steering ratio for smoother handling, an even wider angle (70°), adjustable lock stoppers, reduced weight thanks to lighter materials, and an optimised design. Approved by drifting champion James Deane !
Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations !
Two versions are available :
- Standard : the V2 kit is available in a standard version, using the existing steering rack, without requiring any particular modifications to the vehicle. If you choose this version, it is possible to upgrade it later, ordering only the steering rack relocation kit (contact us for more information).
- Steering rack relocation : this version of the V2 kit allows you to move the steering rack 46 mm forward. All necessary hardware is included, and installation will require cutting and welding. The final result is an even greater steering angle (over 70°), a smoother Ackermann effect, all while ensuring better clearance of the oil pan (ideal for RB or JZ swaps).

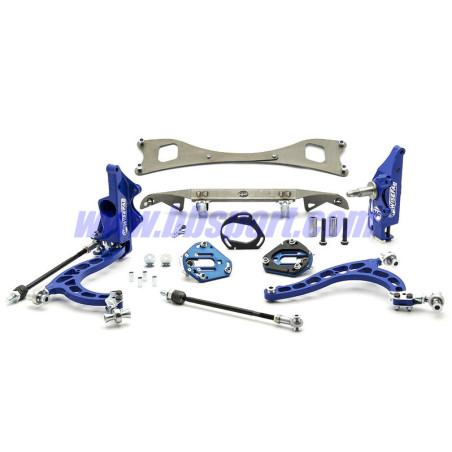

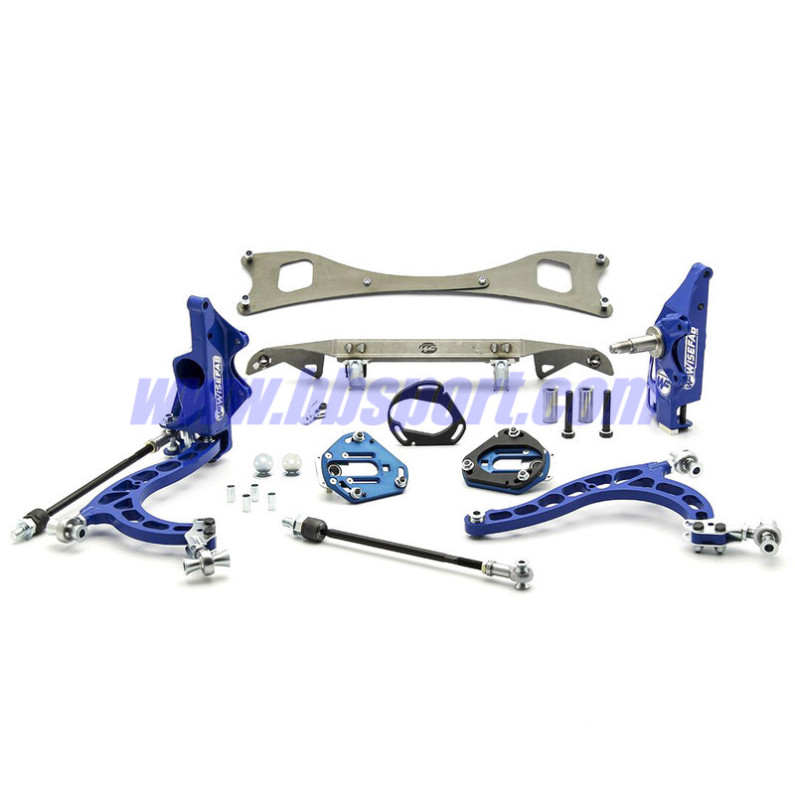

Kit contents :
- Camber and caster adjustable top mounts
- Hub knuckles
- Lower arms
- Tie rods and tie rod ends
- 30 mm offset steering spacers for tie rods or steering rack relocation kit
- All required harware for installation
- Adjustable lock stoppers
- Adjustable Ackermann effect
- Installation and tuning manual
Manufacturer advice :
- Wisefab recommend a wheel diameter that doesn't exceed 635 mm (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc.)
- Above 635 mm, the inner wheel wells will need to be modified
- Wide arches or arch extensions are useful for this kit (track width is increased of about 8 cm at each side)
- We advise you to use 8" wide front wheels, with an ET35 (or similar size like 7" ET45 or 9" ET20)
- Adjust camber from -4.5 to -3.5°
- Adjust caster from 3 to 4°
- Adjust toe in/out to 0
