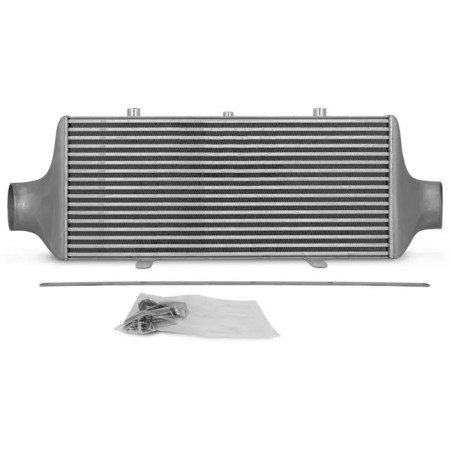

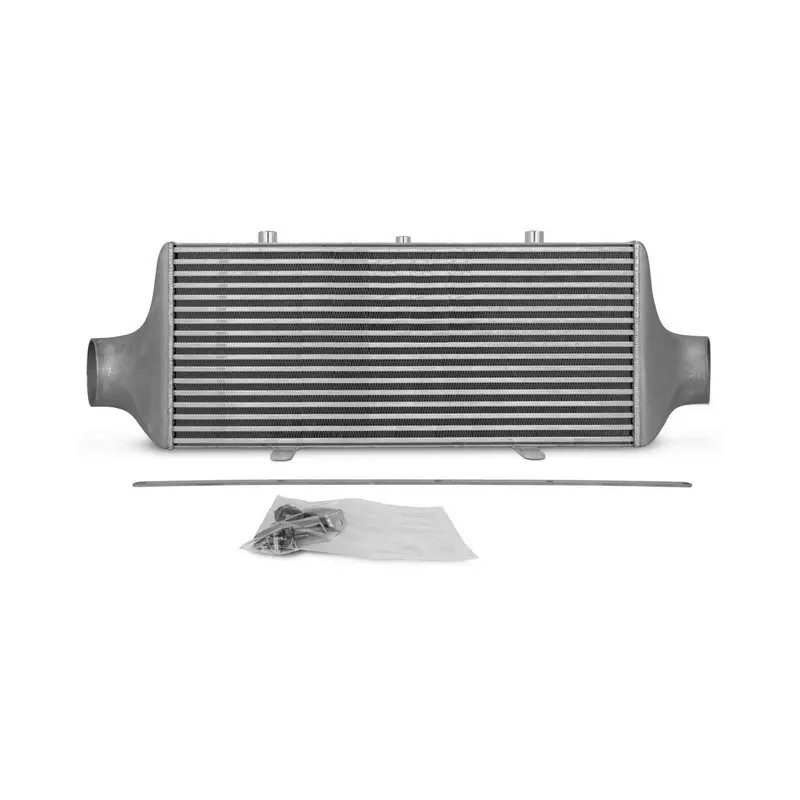

COMPETITION INTERCOOLER KIT for EVO2 für Toyota Supra JZA80 MK4
The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with following dimensions 700 mm x 300 mm x 155 mm / 27,5 Inch x 11,8 Inch x 6,1 Inch. This high-performance core offers an 262 % larger frontal surface and 331 % more core volume compared to the stock intercooler.
The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). The connection position is angled with 30° to the back. The cast aluminum is basically designed for a connection diameter of 4Inch (Ø102mm) and can be adapted to the following connection sizes or shapes depending on customer requirements. Special shapes and sizes can be requested separately.
- standard silicon hose connection 3Inch (Ø76mm), 3,5Inch (Ø89mm), 4Inch (Ø102mm)
- Vibrant pipe connection 3Inch (Ø76mm), 3,5Inch (Ø89mm), 4Inch (Ø102mm)
The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
All our products are subject to a continuous quality monitoring.
Important notes for the installation:
- no Plug and Play installation
- SMIC to FMIC swap (including all mounting material for the intercooler)
- elimination of AC cooler
- expansion tank have to be repositioned (separately available in our shop)
- cooling loop for the power steering have be repositioned (separately available in our shop)
- charge pipes have to be modified according to the intercooler (not included to the kit)
Dimensions stock intercooler:
270 mm x 215 mm x 130 mm / 10,6 Inch x 8,5 Inch x 5,1 Inch
V = 7,54 L / 460 Inch³
A = 580,5 cm² / 90 Inch²
Dimensions WAGNERTUNING intercooler:
700 mm x 300 mm x 155 mm / 27,5 Inch x 11,8 Inch x 6,1 Inch
V = 32,5 L / 1983 Inch³ +331%
A = 2100 cm² / 325 Inch² +262%
kit comes with:
1 intercooler (uncoated)
2 silicone adapter hoses (depending on the type of connection)
1 mounting material
1 installation instruction
Due to the individual adjustment, the delivery time is delayed to approx. 10 working days!
The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with following dimensions 700 mm x 300 mm x 155 mm / 27,5 Inch x 11,8 Inch x 6,1 Inch. This high-performance core offers an 262 % larger frontal surface and 331 % more core volume compared to the stock intercooler.
The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). The connection position is angled with 30° to the back. The cast aluminum is basically designed for a connection diameter of 4Inch (Ø102mm) and can be adapted to the following connection sizes or shapes depending on customer requirements. Special shapes and sizes can be requested separately.
- standard silicon hose connection 3Inch (Ø76mm), 3,5Inch (Ø89mm), 4Inch (Ø102mm)
- Vibrant pipe connection 3Inch (Ø76mm), 3,5Inch (Ø89mm), 4Inch (Ø102mm)
The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
All our products are subject to a continuous quality monitoring.
Important notes for the installation:
- no Plug and Play installation
- SMIC to FMIC swap (including all mounting material for the intercooler)
- elimination of AC cooler
- expansion tank have to be repositioned (separately available in our shop)
- cooling loop for the power steering have be repositioned (separately available in our shop)
- charge pipes have to be modified according to the intercooler (not included to the kit)
Dimensions stock intercooler:
270 mm x 215 mm x 130 mm / 10,6 Inch x 8,5 Inch x 5,1 Inch
V = 7,54 L / 460 Inch³
A = 580,5 cm² / 90 Inch²
Dimensions WAGNERTUNING intercooler:
700 mm x 300 mm x 155 mm / 27,5 Inch x 11,8 Inch x 6,1 Inch
V = 32,5 L / 1983 Inch³ +331%
A = 2100 cm² / 325 Inch² +262%
kit comes with:
1 intercooler (uncoated)
2 silicone adapter hoses (depending on the type of connection)
1 mounting material
1 installation instruction
Due to the individual adjustment, the delivery time is delayed to approx. 10 working days!
