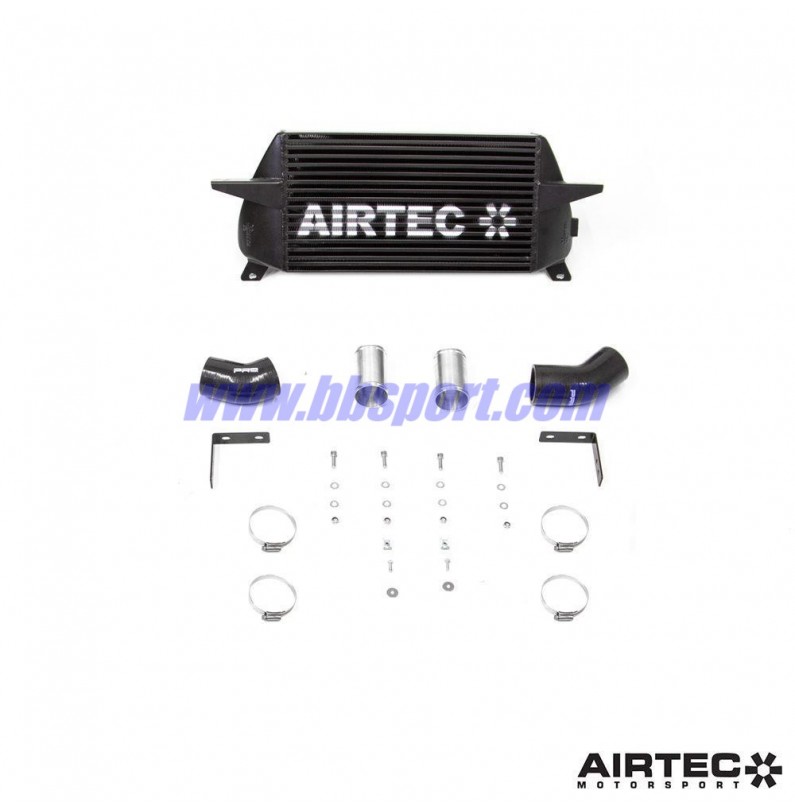

AIRTEC Motorsport Front Mount Intercooler for Ford Mustang 2.3 EcoBoost

As part of our expanding Ford Mustang product range, AIRTEC Motorsport is proud to launch our intercooler upgrade for the 2.3 EcoBoost model suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a taller core with an increased 90mm depth. This offers a massive 107% increase in overall capacity in comparison to the original intercooler, as well as a 84% increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Dimensions:
OEM Intercooler
Width: 525mm

Height: 145mm

Depth: 80mm

Capacity: 6.1 litres

Front area: 761cm²

AIRTEC Motorsport Intercooler
Width: 500mm

Height: 280mm

Depth: 90mm

Capacity: 12.6 litres

Front area: 1,400cm²

Outlets: 55mm

Features:

• Huge increase in cooling ability
• Reduced charge temperatures
• 107% increase in capacity compared to original intercooler
• 84% increase in frontal area compared to original intercooler
• High-flow, moulded one-piece cast end tanks
• Powdercoated black finish
• All fittings and fixtures included
• Detailed fitting guide included

Registered Design Right:

AIRTEC part no: ATINTFO59
