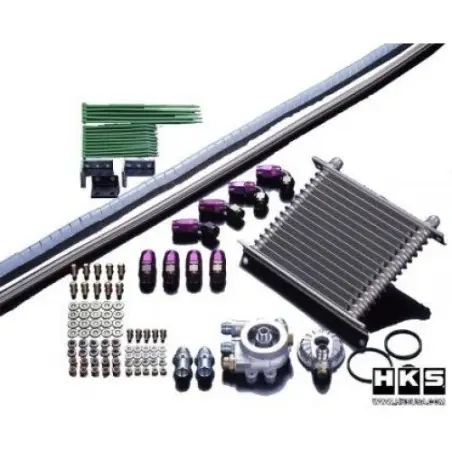

HKS R-Type Oil Cooler Kit Toyota Supra MK4 JZA80

It's very important to control the oil temperature to enjoy driving.

Extreme increases in oil temperature can break down the oil and decreases its ability to lubricate, cool and clean the engine and can cause damage as a result. HKS Oil Cooler Kits are designed with advanced cooling technology which enables stable oil temperatures to extract the maximum ability from the engine.

Oil Cooler Kit for Vehicle Specification

Optimum size of the core and layout design improves cooling performance.

With the use of a new core, both cooling and pressure drop prevention are balanced at a high level. Some vehicle applications contain air guides which maximize the air flow through the oil cooler core during vehicle operation, even in drifting applications where the car may not be facing in the direction it is pointing.

* Some kits are the factory replacement type.

HKS Oil Cooler kit R Type is a filter relocation type for strict control of oil condition.

HKS Oil Cooler R Type can relocate the location of an oil filter so the oil filter replacement can be easily done. As remarkable difference from the others, thermostat is activated by temperature of the oil flow out of the engine, that allows engine oil to be maintained at the ideal temperature. This thermostat has high response and relief feature which activates when differential pressure exceeds 200kPa (2.0kgf/cm2).

Oil Temperature Meter: Oil Pressure Gauge Installation Hole

Adaptor Thermo: M12×P1.25 (1hole) , PT1/8 (1hole)
