Wagner Tuning Competition Intercooler Kit Fiat 500 Abarth (I)
910,00 €
Impuestos incluidos
DISPONIBILIDAD DEL PRODUCTO: STOCK EXTERNO EN PROVEEDOR. PLAZO PARA ARTICULOS EN STOCK, de 7 a 15 días ----- PARA ARTICULOS SIN STOCK, ENCARGO A FABRICA, EL PLAZO PUEDE EXCEDER DE 30 DIAS HASTA 60. CONSULTE ANTES DE SU COMPRA DIRECTA .......... AL COMPRAR ESTE ARTICULO VD ACEPTA LAS CONDICIONES DE VENTA. (Ver condiciones en https://www.bbsport.com/content/condiciones-venta)
Wagner Tuning Competition Intercooler Kit Fiat 500 Abarth
Política de seguridad
Nuesta página ofrece pagos seguros mediante pasarela con encriptación de pagos
Política de entrega
Hacemos envíos a todo el mundo, plazos entrega cortos (en función disponibilidad)
Política de devolución
Garantizamos la satisfacción del cliente, si no cumplimos, le devolvemos su dinero. ________________
New release 3. quarter 2018

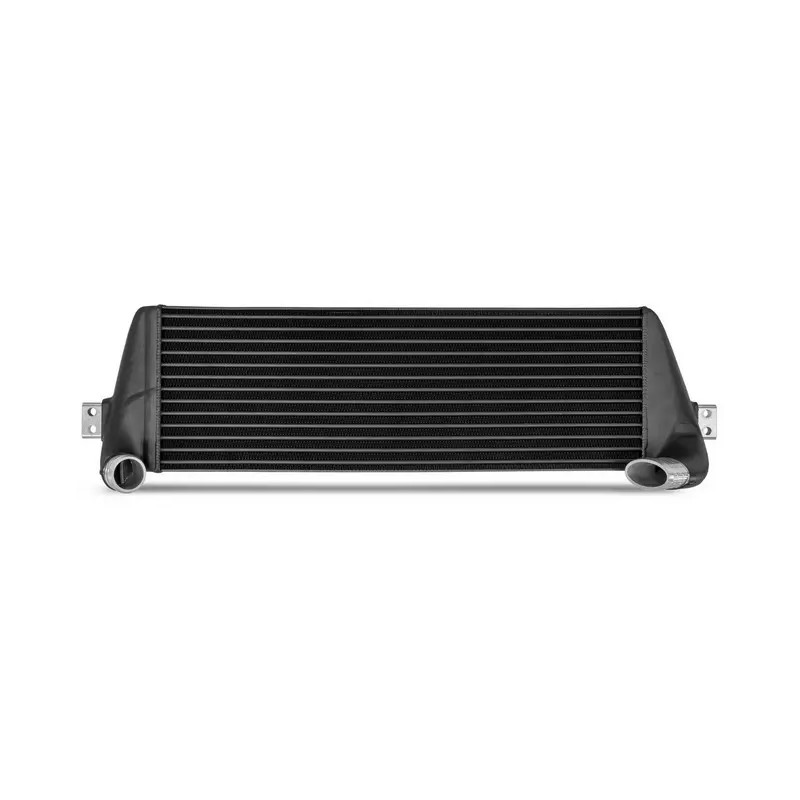

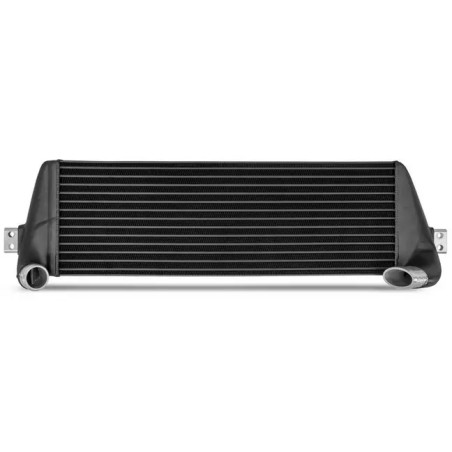

Competition intercooler kit for Fiat 500 Abarth
Fiat Abarth 500 1,4 Turbo 99 KW/135 PS (2008-)
The WAGNERTUNING high-performance intercooler has a new competition core (Tube Fin) with the dimensions 600 mm x 204.6 mm x 80 mm (9.8 liters), which was developed especially for the requirements of the Fiat 500 Abarth. This high-performance core offers an 85% larger frontal surface and 131% more core volume compared to the stock intercooler. The aluminum cast endtanks were designed in CAD and optimized by using CFD simulations (for an ideal internal airflow).
For the best possible heat exchange, the WAGNERTUNING high-performance intercooler is installed in the front of the car, replacing the two original side intercooler. The newly developed elliptical hose connection at the outlet of this intercooler and the WAGNERTUNING silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.
An anti-corrosion coating with heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Dimensions stock intercooler (2x):
190 mm x 175 mm x 64 mm
V = 4,3 Liter
A = 665 cm²
Dimensions WAGNERTUNING intercooler:
600 mm x 205mm x 80 mm
V = 9,8 Liter
A = 1227 cm²
Packing list:
1 intercooler (black coated)
1 cross member (black coated)
2 silicone hoses (black)
1 mounting material
1 installation instruction
Competition intercooler kit for Fiat 500 Abarth
Fiat Abarth 500 1,4 Turbo 99 KW/135 PS (2008-)
The WAGNERTUNING high-performance intercooler has a new competition core (Tube Fin) with the dimensions 600 mm x 204.6 mm x 80 mm (9.8 liters), which was developed especially for the requirements of the Fiat 500 Abarth. This high-performance core offers an 85% larger frontal surface and 131% more core volume compared to the stock intercooler. The aluminum cast endtanks were designed in CAD and optimized by using CFD simulations (for an ideal internal airflow).
For the best possible heat exchange, the WAGNERTUNING high-performance intercooler is installed in the front of the car, replacing the two original side intercooler. The newly developed elliptical hose connection at the outlet of this intercooler and the WAGNERTUNING silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.
An anti-corrosion coating with heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Dimensions stock intercooler (2x):
190 mm x 175 mm x 64 mm
V = 4,3 Liter
A = 665 cm²
Dimensions WAGNERTUNING intercooler:
600 mm x 205mm x 80 mm
V = 9,8 Liter
A = 1227 cm²
Packing list:
1 intercooler (black coated)
1 cross member (black coated)
2 silicone hoses (black)
1 mounting material
1 installation instruction
200001109
Ficha técnica
- Fabricante
- Fiat
- Modelo
- 500, Abarth
Detalles del producto
- Marca: Wagner Tuning
- Referencia: 200001109
- Stock: Out of stock
