AST Roll Cages for Motorsport, Trackday, NASCAR doors style

Roll cage bars are an essential element for our safety in the practice of automotive as a sport, whatever the specialty in which we participate.

AST Roll cages are manufactured with the latest advances in 3D software.The cockpit of the vehicles are scaned in a three-dimensional manner with the latest technologies to be able to subsequently make computer-assisted design.

This allows to cut the tubes by laser and make complex unions of several tubes at the same point, so the efforts in the structure are contrasted between tubes and their opposites.

IT IS OUR RESCUE IN CASE OF A RAILWAY ACCIDENT

The safety structures, which are currently mandatory in competition vehicles participating in official competitions under FIA regulations, are intended to protect occupants in case of accidents, particular in case of turning or shock.

In the cars that must pass technical verification are required and must comply with Annex J FIA, at the end of this page you can access the link of the FIA norms by clicking on "know more details".

In the vehicles that practice tandas or trackdays are usually highly recommended, in an official competition it is of mandatory use to guarantee our own safety in case of accidents with or without turning, therefore you have to be aware that although they do not force us in free tandas, it is an accessory that we shouldn’t have to pass over because it’s our saviors in case of accident.

In addition, it is not only for our safety, but also the assembly of a roll cage significantly strengthens the chassis making it more consistent and compact, the chassis of origin tends to have some flexibility to provide passengers' walking comfort, if we run on a circuit and don't carry bars, the chassis will be subjected structurally the torsional forces and this will gradually weaken.

Glosary of terms

The track day (track day):

Back arc of 4 points, located behind the front seats. A structure welded is supplied

Full Cage (Track Day)

Full arc of 6 points, crossing the dashboard and reaching to the back of the vehicle. A structure welded is supplied and joined with pipe joints bolt in

Bolt in Motorsport:

Full arc of 6 points, crossing the dashboard  and reaching to the back of the vehicle.A soldier is delivered and joined with a helmet.

Weld-In and Motorsport:

Full arc of 6 or more points, crossing the dashboard and reaching to the back of the vehicle. It is delivered in one kit to be welded

Multipoint Weld-In Motorsport

Full arc of 8 or more points, crossing the dashboard and reaching to the back of the vehicle.It is delivered in one kit to be welded

SERIES OF ROLL CAGES

Within the AST Roll cages range we can find 3 general groups:

Track Day Line for street use and weeknd track in circuits

Motorsport Series for FIA and non FIA competition races

NASCAR doors style for drift use

Track Day Line (Street and weeken track use)

The Track Day line series is mainly featured by being homologable cages, i.e. a priori comply with the regulations to circulate by the public road, however, to avoid unforeseen surprises, we advise all users to contact a homologator to consult the street legal local rules for every country.

In the Track Day Line series, we can find two groups:

Rear Cages and Full Cages

AST Rear Cages Track Day

The Rear Cages are four-point backs, recommended for vehicles whose users seek a security plus to participate in sports tests and circuit track days without giving up losing the daily use of the vehicle.

For these cases, a homologator employee should be consulted to legalize the installation, if necessary (according the rules in you country) with the rear cages it is mandatory to cancel the rear places in the technical sheet of the car.

All structures are delivered with the necessary reinforcement plates to be weld in the body work on which the structure is going to be bolted in

Within this group there are 4 different variants of rear cages (Depending on the car model it must be available some of them)

Rear Cage V1

Rear roll cage 4 points of anchor with bars intended to subject the harnesses belts. Incorporate a single X in the rear arc. They are supplied with reinforcement plates to weld the chassis on which the structure will be bolted in

Rear Cage V2

Rear roll cage 4 points of anchor with bars intended to subject the harnesses belts. Incorporate 2 X cross bars. They are supplied with reinforcement plates to weld the chassis on which the structure will be bolted in

Removable Rear Cage V1

Rear roll cage 4 points of anchor with bars intended to subject the harnesses belts. Incorporate 1 X cross bar. They are supplied with reinforcement plates to weld the chassis on which the structure will be bolted in. They are supplied with disassembly unions type FIA to facilitate assembly and disassembly within the cockpit

Rear Cage V2 Street

Rear roll cage 4 points of anchor with bars intended to subject the harnesses belts. Incorporate 1 X cross bar. They are supplied with reinforcement plates to weld the chassis on which the structure will be bolted in. They are supplied with disassembly unions type FIA to facilitate assembly and disassembly within the cockpit

2 - AST Full Cages Track Day (Legal Street)

The Full Cages are 6 points anchor arc, a complete structure that covers the back arc and the front arc providing a more complete protection to the pilot and copilot in case of departure and/or accident with turning.

They can also be legalized for use on the public road, but it is you need to consult before with a homologer to review the compatibility with the regional regulations of your nearest ITV station.

Full Cage V1 Street

Basic arc of 6 points of anchor with rear diagonal bar and horizontal bar designed to subject the arneses belt.It is supplied in two pieces and served in a transport palet to be able to introduce them into the habitat and connect them with each other through FIA union tubes.They are supplied with reinforcement plates to weld the chassis on which the structure is turning.

Full Cage V2 Street

Basic arc of 6 points of anchor with a X back and horizontal bar designed to subject the arneses belt.It is supplied in two pieces and served in a transport palet to be able to introduce them into the habitat and connect them with each other through FIA union tubes.They are supplied with reinforcement plates to weld the chassis on which the structure is turning.

Full Cage V3 Street

Arc of 6 points of anchor with 2 X back, one in the main arc and another in the back arc and with both horizontal bars to can anchor the arneses.It is supplied in two pieces and served in a transport palet to be able to introduce them into the habitat and connect them with each other through FIA union pipes.They are supplied with reinforcement plates to weld the chassis on which the structure is turning.

Motorsport series FIA

The FIA Motorsport Series is indicated for all those vehicles that taking part in competitions under FIA regulations, must meet the requirements required in Annex J to the FIA

In the AST Motorsport cages, we can find 3 variants, Bolt in, Weld in, or Multipoints

The cage BOLT IN they are 6 points structures already welded with each other, so that the customer introduces them in the car without having to do subsequent welding operations.By default, they are served in 2 semiarks, front arc and back arc, they are sent to destination in a palet by truck in transport.

The cage THE WORLD IN they are 6 points structures and are provided as a kit of loose bars so that the customer can weld them in a specialized AST workshop.

Multi-point cages are more complex, they are 8-point structures that usually have prolongations to the front torrents of the vehicle, they are for FIA-superior competitions in which more complex structures are needed with a greater protection and a more considerable and compact chassis reinforcement together.

Variants in

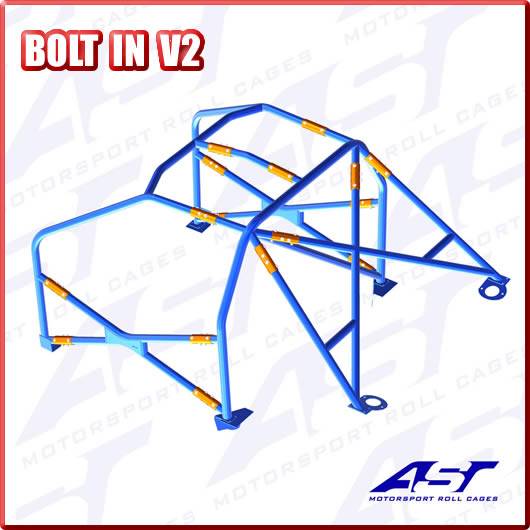

There are 5 variants designs from the most basic version of 6 points (Variant V1) to the more complex version of 6 points (Variant V5) that includes more comprehensive and complex reinforcements.

Basic structure of 6 points of anchor already sold and ready to mount on the vehicle (Serves in two pieces on a transport palette).The front arc connects to the back by union helmets twisted with each other.It is necessary to weld reinforcement plates to the chassis and then to turn the structure to such plates.Simple side bars on the doors and a back horizontal bar to can anchor the arneses.

It’s the same as the basic version V1 to the difference that 2 crosses in X are incorporated on the doors

It’s the same as the basic version V1 to the difference that 2 crosses in X are incorporated on the doors and a diagonal of strength on the roof

It’s the same as the basic version V1, unlike that 2 crosses in X are incorporated on the doors, a boost cross on the roof, a cross X on the back arc and another cross X on the main arc and boosts A pilar on the front mountains

The Weld In

There are 5 variants designs from the most basic version of 6 points (Variant V1) to the more complex version of 6 points (Variant V5) that includes more comprehensive and complex reinforcements.

Basic structure of 6 points of anchorage, serves as a kit with the loose bars to weld.

The transport of the WELD IN cages is cheaper than the BOLT IN because they occupy less volume, but the car user must make them welded in a professional welding workshop.The responsible del work of welding lies on the operarian soldier.

It is essential to make a perfect welding to ensure the structure's resistance and its protection to the occupants, if you're not sure that it's going to be done correctly it's more advisable to choose the BOLT IN option.

It is also necessary to weld reinforcement plates to the chassis and then to turn the structure to such plates.Simple side bars on the doors and a back horizontal bar to can anchor the arneses.

Taking the basic version V1 to the difference that 2 crosses in X are incorporated on the doors, a cris on the back arc and a longitudinal bar on the roof.

Basic version V1 there are two crosses in X on the doora cross on the roof, a cross on the main arc and another cross on the back arc

Basic version V1 there are two crosses in X on the door, a boost cross on the roof, a cross on the main arc, another cross on the back arc and front boosts A pillar.

Basic version V1 there are two crosses in X on the doorA cross of strength on the roof, a cross on the main arc, another cross on the back arc, front strengths A pillar two rear sides

Multipoints in the world

There are 5 variants designs from the most basic multi-point version (Variant V1) to the most complex multi-point version (Variant V5) that includes more comprehensive and complex reinforcements.

Multipoint structure, it serves as a kit with the loose bars to weld.Simple side bars, cross in rear arc, double bar for anchor arneses, rear side reinforcements and subjections in front and rear torrents

It is also necessary to weld reinforcement plates to the chassis and then to turn the structure to such plates.

The transport of the WELD IN cages is cheaper than the BOLT IN because they occupy less volume, but the car user must make them welded in a professional welding workshop.The responsible del work of welding lies on the operarian soldier.

It is essential to make a perfect welding to ensure the structure's resistance and its protection to the occupants, if you're not sure that it's going to be done correctly it's more advisable to choose a BOLT IN option.

Taking the basic version V1 to the difference that 2 crosses in X are incorporated on the doors and a longitudinal bar on the roof.

Basic version V1 there are two crosses in X on the doorA pillars, a cross on the main arc and another cross on the back arc

Basic version V1 there are two crosses in X on the door, a boost cross on the roof, a cross on the main arc, another cross on the back arc, slopper boost and front boosts.

Basic version V1 there are two crosses in X on the door, a cross of reinforcement on the roof, a cross on the main arc, another cross on the back arc, slider reinforcement, front reinforcements A pillar and a bar the lower rear.

MINIMUM REQUIRED CONFIGURATIONS ACCORDING TO FIA

Here we attach a table so that you know the minimum FIA configuration you will need according to your car model and according to your FIA homologation sheet

MOTORSPORT IN:

• BOLT IN V1 3 doors: Previous to 01/01/2002
• BOLT IN V1 5 doors: Previous to 01/01/2002
• BOLT IN V2 3 doors: Previous to 01/01/2002
• BOLT IN V2 5 doors: Previous to 01/01/2002
• BOLT IN V3: From 01/01/2002 to 31/12/2005
• BOLT IN V4: From 01/06/2006 to date

MOTORSPORT IN:

• WELD IN V1: Before 01/01/2002
• THE WORLD IN V2Previous to 01/01/2002
• THE WELD IN V3: From 01/01/2002 to 31/12/2005
• THE V4From 01/06/2006 to today
• THE V4From 01/06/2006 to today

THE WORLD IN:

• MULTIPOINT WELD IN V1: Previous to 01/01/2002
• MULTIPOINT IN V2Previous to 01/01/2002
• MULTIPOINT WELD IN V3The All dates or no FIA

• MULTIPOINT IN V4All dates or without FIA

• MULTIPOINT WELD IN V5The All dates or no FIA

NOTE ON TRANSPORT

These structures are very voluminous in some cases, so transport to destination can vary depending on whether they are requested as soldats or to sold.

The price of each structure includes the cost of transport from the factory to the customer’s home within the Peninsula, for outside Spain or the islands, it is necessary to consult prices apart

In the event that you want to save the shipping ports can request the local collection in the factory or order the collection if they have their own means of transport
